Bag in Box Filling Machine for Fully-automatic Liquid Packaging

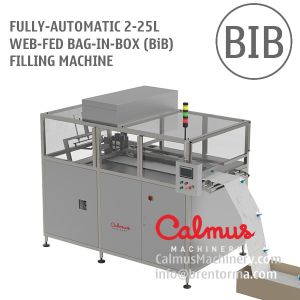

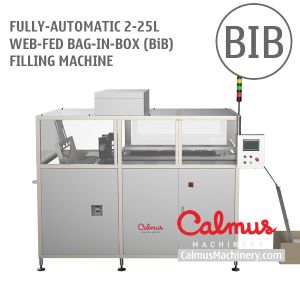

Fully-automatic BIB Filler | WEB Fed Bag in Box Filling Machine

The Fully-automatic BIB Filler | Bag in Box Filling Machine is designed for filling spouted bags with a wide range of liquids like drinking water, fresh milk, edible oil, liquid egg, post-mix syrup and beverage. It features fully-automatic by employing PLC and touch screen control system. The whole process of cutting apart from the fed continuous bags, delivering to heads for decapping, vacuumization (optional), nitrogen injection (optional), filling, capping and transiting to the conveyor can be completed automatically, no human operation required.

Features:

1) Fully-automatic, WEB type bags fed.
2) Easy to use. The touch-screen control system makes operation easy.
3) An electromagnetic or turbine flowmeter employed improves filling precision and truly achieves the quantitative filling.
4) An air filter employed brings clean air to the filling space.
5) Grade 304 stainless steel body and 316L stainless fluid-contact parts.
6) Filling a different capacity bag acceptable only by changing the setting.
7) Options of vacuumization and nitrogen injection available for specific products use.

Specifications:

Applicable bags: pre-cut continuous module or WEB type bags, spout-fitted, 2-25 litres. (Spout is called Gland or Flange too.)
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
Power: 1.0 kW
Compressed air: 6-8 bar, 500 NL/min

Procedures:

1. Automatically feed bags.
2. Automatically decap, fill, cap and cut bags apart.
3. Automatically exit filled bags.

Fully-automatic. Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts. World famous brands of key components and many are imported. Download the BROCHURE.

We also supply the whole Bag in Box Packaging Line which includes the Bag in Box Filling Machine, Box Erector, Bag Inserter and Box Sealer, fully-automatic.

Absolutely EU quality standard, but less than half of EU price.

Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include commercial filtration systems, bottle and bag-in-box (BIB) filling lines, bottle blow molding machines, as well as additional equipment used in the water, beverage and food processing industry. We have helped many foreign customers build their own plants or expand their business by supplying water filtration systems, bottle filling machines, bag in box filling machines, bottle blow molding machines and other assistant equipment. For more information, please visit www.CalmusMachinery.com

Contact us today for a competitive price.

---
